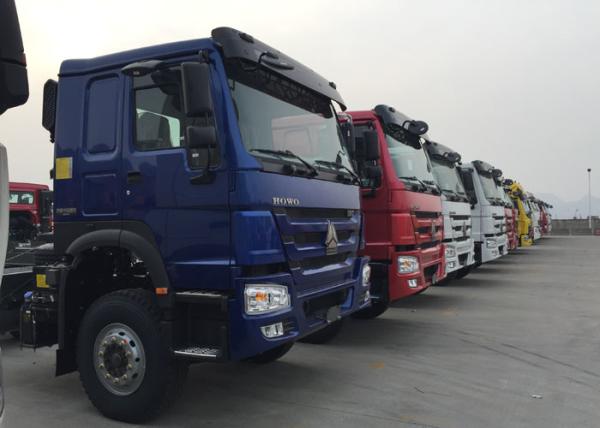

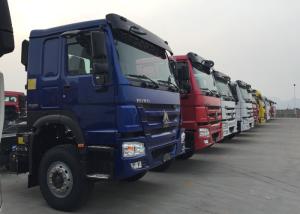

HOWO Drawing Head Tractor Truck LHD 6x4 371HP single berth cabin air suspension
Description:
HOWO Drawing Head Tractor Truck LHD 6x4 371HP single berth cabin air suspension
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.
4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.
5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.
Specification:
| HOWO Drawing Head Tractor Truck LHD 6x4 371HP single berth cabin air suspension |
| Model | ZZ4257S3241W |
| Drive Type | 6×4 |
| Engine | | D12.38 , 380HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 11.596L | |

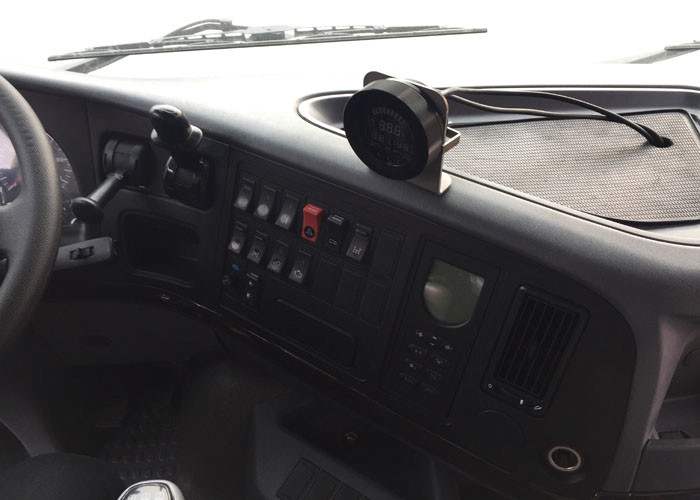

| Cabin | HW76(with single sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8098 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3200+1350(mm) |
| Overall dimension | 6800×2496×2958(mm) |
| Fifth Wheel | #50, #90 |
| The curb weight | 9180(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 102km/h |
| Color | White, red, green, golden and so on. |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1.We are professional manufacturers to do the special vehicles ,such as fire truck ,
wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck,mixer
truck, truck with crane ,garbage truck ,vacuum sewage suction truck,etc .
2.We are supply all brands special truck of SINOTRUK
3.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
4.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
5.Factory export department directly sale ,reliable quality
6.Export experience more than 12 years
7.Cheap / competitive price, high quality ,you get more than your paid
8.With CCC, ISO , BV approved
9.The heart of the service, rational design
