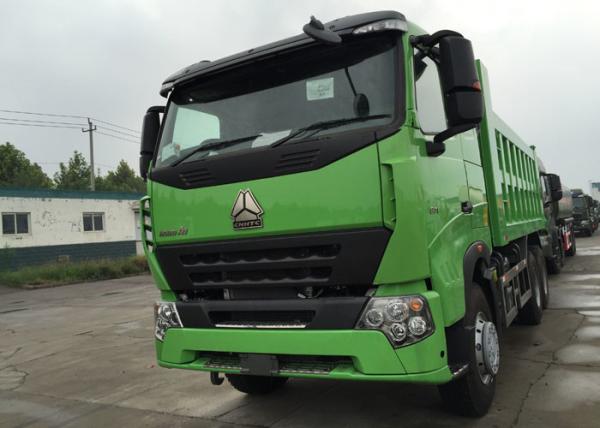

Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color
Description:
Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color
HOWO-A7 series products are oriented to the international market and domestic high-end heavy truck market. In the process of design and development, in order to ensure success in global competition, China's collaborative design in important parts with the international first-class supplier in accordance with international key assembly design standards, combined with China's actual characteristics of joint scientific research and development, special facilities, out of a a new international technology cooperation.
HOWO-A7 series of products using the German ZF absorption steering machine and WABCO double cylinder oil pump, air compressor, car brake valve and AMT transmission and SmartShift intelligent hand joint design since the development of shift system, Germany VOSS brake interface, MANN-HUMMEL fuel filter and plastic air filter system, SABO damper BEHR cooling system, VDO + instrument control system, VDO audio system, WESTFALIA exhaust bellows, HENDRICKSON rubber suspension and other world-class technology and products at the same time. With years of experience and Chinese heavy truck market for accurate understanding, developed with independent intellectual property Chinese many outstanding heavy truck assembly.
Specifications:
| Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4 |
| Model | ZZ3257N3447N1 |
| Drive Type | 8×4 |
| Engine | | WD615.69 , 336HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3800+1350(mm) |
| Overall dimension | 8175×2496×3450(mm) |
| Cargo body | 5400×2300×1300(mm),Bottom:12mm, Side:10mm |
| The curb weight | 12300(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on.
|
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)SMARTSHIFT-AMT intelligent shift hand self integrated transmission
2)quick and efficient spare parts supply bring you more convenient
3)low fuel consumption
4) strong enough engine
5)with all kinds of truck model, which can fulfil your requirement
6)the key parts adopt the world's top technology products
7)based on strong technical support and top level technology make the trucks with high
quality and more reliable
8)Optimized cargo body structure,light weight,high rigidity,large loading capacity
9)Using the high strength steel,it has long service life
10)Optimized the sealing structure has the better sealing effect.
11)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
