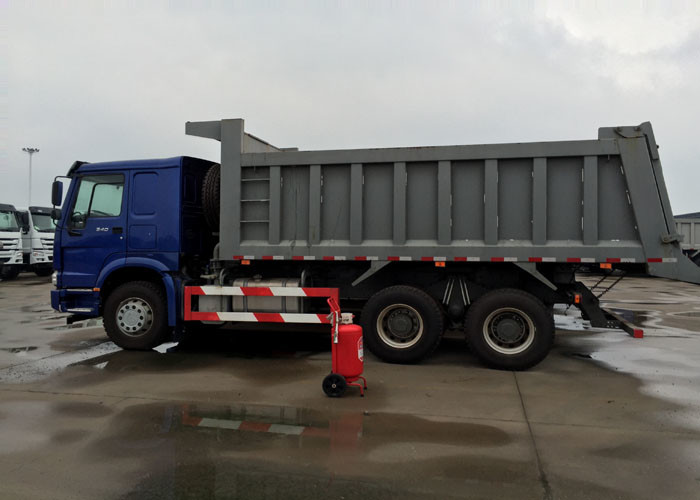

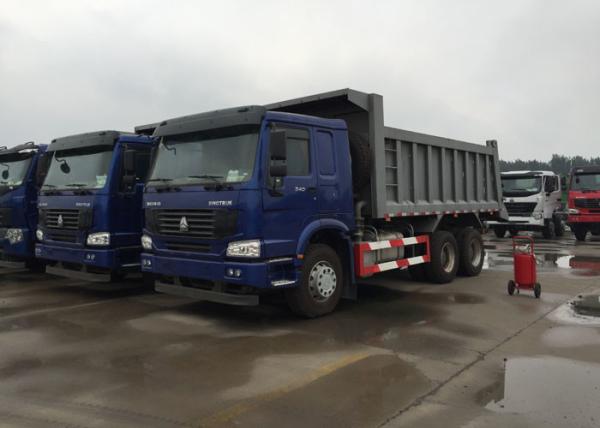

HOWO A7 Dump Truck 336HP 6X4 LHD 20CBM 40ton HYVA cylinder for Mininig industry
Description:
HOWO A7 Dump Truck 336HP 6X4 LHD 20CBM 40ton HYVA cylinder for Mininig industry
The afternoon of April 27, 2010, the first batch of 500 vehicles China heavy truck tractor HOWO
shipment sent to Venezuela Cabello at the port of Qingdao port group company of Dagang Port. The delivery ceremony held at the same time in port, Chinese Zhongqi Import & Export Company department chief representative of Asian American Wang Yingbo will hand over the car keys to the car. The representative of Venezuela with hands exported to Venezuela project started Chinese heavy large trucks exported to Venezuela precedent.
The quality of the car depends not only on the development of links, also need to manufacture link protection. Chinese truck to invest a lot of money on Ji'nan truck
The welding of the Limited by Share Ltd, stamping, upgrade coating production line, ensure products especially ho Lok Lok A7 luxury high-end heavy truck with first-class quality.
In May 11th, the reporter visited the stamping, China heavy condensed decades of experience in the production and management of intelligent welding, painting, assembly production line punching welding highly automated production line, coating line of energy saving and environmental protection and busy orderly assembly line so that reporters find everything fresh and new.
Specification:
| HOWO A7 Dump Truck 336HP 6X4 LHD 20CBM 40ton HYVA cylinder for Mininig industry |
| Model | ZZ3257N3647N1 |
| Drive Type | 6×4 |
| Engine | | WD615.69 , 336HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3600+1350(mm) |
| Overall dimension | 8375×2496×3450(mm) |
| Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12200(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) competive price, cost-effective
2) reliable quality
3) good after slaes service, which can send engineers for traning and maintainance
4) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
5) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
6) low fuel consumption
7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements
9) using the high strength steel, make it has a long service life
10) fast delivery time, we can arange production according to your needs exactly and quickly
11) professional import and export dealing precedure, make customs clearance more high efficiency
12) excellant apperance of cabin, safety, reliable
13) quick and efficient spare parts supply bring you more convenient
14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
15) The hydraulic sytem using HYVA brand or Domestic famouse brand
