Description:
This type product , with features of reliable structure , high loading capacity which can
load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide
acceplication.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specifications:

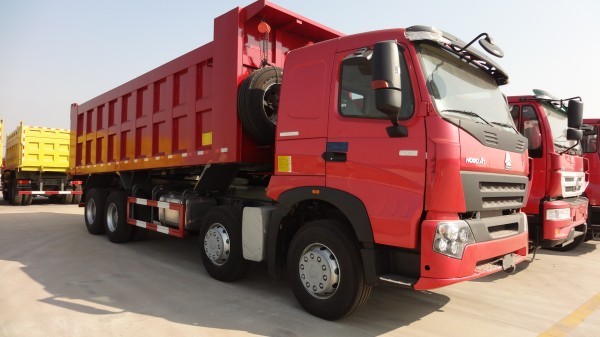

| Tipper Dump Truck SINOTRUK HOWO A7 8X4 for Construction ZZ3317N3867N1 | |
| Model | ZZ3317N3867N1 |
| Drive Type | 8×4 |
| Engine | | WD615.47 , 371HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 1800+3500+1350(mm) |
| Overall dimension | 10660×2496×3450(mm) |
| Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 15300(Kg) |
| Gross weight | 31000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on.
|
Applications:
Which is used in Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1)Optimized cargo body structure,light weight,high rigidity,large loading capacity
2)Using the high strength steel,it has long service life
3)Optimized the sealing structure has the better sealing effect.
4)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
Multiple box structures and device selections
